Cold Water – Compact 600 Series

B.A.R. Group - Cold Water Compact 600 Series

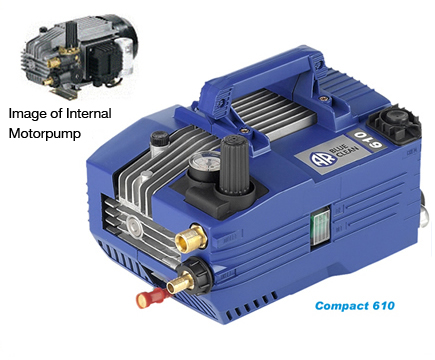

600 Series

The Mobile Workmate. A tough, portable and compact unit ideal where you need a heavy duty unit, but need portability or to save space. Popular with builders who need to haul a machine up multi story buildings and ladders or scaffolding.

Features:

B.A.R. Group - Cold Water Compact 600 Series
  • Triplex pump with ceramic plungers
  • Automatic by-pass valve
  • Pressure gauge
  • Pressure adjustment
  • Built-in detergent suction
  • Motor thermal protector
  • Power supply cord length 5m
  • Mesh Water filter - Optional large filter kit available
  • Detergent tank only for 610 mod.
  • H.P. soft type hose gun and lance
  • Adjustable high/low pressure and fan/pencil jet spray head

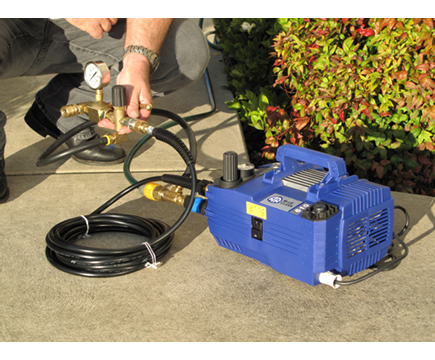

  • Also ideal for small Hydrostatic Pipe Testing units
B.A.R. Group - Cold Water Compact 600 Series
Compact 620
B.A.R. Group - Cold Water Compact 600 Series
Compact 630-650
B.A.R. Group - Cold Water Compact 600 Series
Standard Accessories
B.A.R. Group - Cold Water Compact 600 Series
Optional Accessories
Model 610 620 630 650
Performance
Water Pressure (Psi) 1900 Psi 1900 Psi 1750 Psi 2200 Psi
Water Flow Rate 8.3 l/min 8 l/min 10 l/min 8 l/min
Electric Motor
Power Rating - kW 2.2 kW 2.6 kW 2.6 kW 3.0 kW
Voltage 240 Volt 240 Volt 240 Volt 240 Volt
Electrical Outlet Size 10 amp 10 amp 15 amp 15 amp
Plug Fitted √ X X X
Motor Speed - rpm 2800 rpm 2800 rpm 2800 rpm 2800 rpm
Pump
Pump - Type AR Plunger AR Plunger AR Plunger AR Plunger
Pump - Model Alu. Triplex Alu. Triplex Brass Head Brass Head
Weight 18 kg 20 kg 21 kg 21 kg
Dimensions (cm) L 35 x W 22 x H 24 L 39 x W 24 x H 23 L 39 x W 24 x H 23 L 39 x W 24 x H 23
Standard Accessories
Gun & Lance extn. √ AR334(BIT) 1/4”M Inlet & M22 x 1.5 Outlet
Lance & Head √ 40030 √ 40112 √ 40039 √ 40113
Nozzle Size
Hose 8m 8m 8m 8m
Full Specification Sheet
List Price * $599 $699 $819 $859

* Please note, prices EXCLUDE GST and freight
