* Please note, all quoted prices EXCLUDE GST and freight and are subject to change without notice.

Couplings – BSP and NPT Thread

You can go directly to the Coupling type you need by clicking on the links below.

Quick Connects BSP Thread – Coupler "B"

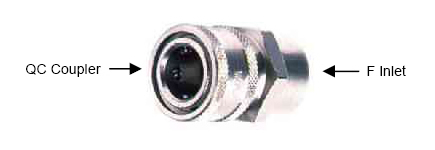

B.A.R. Group - Coupler B
Part # Psi. / Flow Material QC Size Inlet List *
26.2060.00 4050 / 40l/min Nickel
Plated
Brass		 1/4” B 1/4” Bsp F $21
26.2010.20 4050 / 30l/min 3/8” B 1/4” Bsp F $29
26.2010.10 4050 / 30l/min 3/8” B 3/8” Bsp F $29
26.2010.30 4050 / 30l/min 1/2” B 1/2” Bsp F $29

* Please note, prices EXCLUDE GST and freight

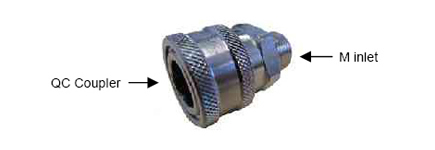

B.A.R. Group - Coupler B
Part # Psi. / Flow Material QC Size Inlet List *
    Nickel
Plated
Brass

26.2010.00 4050 / 30l/min 3/8” B 3/8” Bsp M $29
26.2010.40 4050 / 30l/min 1/2” B 1/2” Bsp M $29

* Please note, prices EXCLUDE GST and freight

Replacement O Ring

Replacement O Rings

ARS250 1 x 10.3177.00 (2.62mm x 12.37) Material: NBR $1
ARS220 1 x 10.3182.00 (2.62mm x 17.96) $2 & 2 x 10.3185.00 (2.62 x 20.29mm) Material: NBR $2
ARS350 1 x 10.3181.95 (2.62mm x 17.86) $4 & 2 x 10.3195.10 (2.62 x 20.29mm) Material: NBR $6

* Please note, prices EXCLUDE GST and freight

Quick Connects BSP Thread – Plug "A"

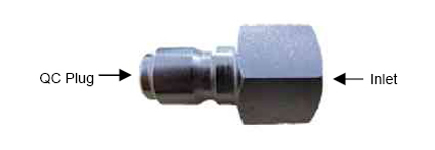

B.A.R. Group - Plug A QC Coupler F Inlet
Part # Psi. / Flow Material QC Size Inlet List *
    Nickel
Plated
Brass
26.2016.61 4050 / 30l/min 3/8” A 1/4” Bsp F $21
26.2015.61 4050 / 30l/min 3/8” A 3/8” Bsp F $12


* Please note, prices EXCLUDE GST and freight

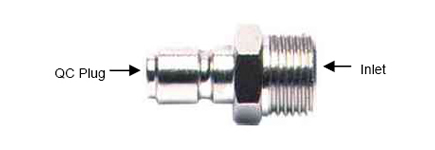

B.A.R. Group - Plug A Quick Connect M Inlet
Part # Psi. / Flow Material QC Size Inlet List *
    Nickel
Plated
Brass

26.2023.61 4050 / 30l/min 3/8” A 3/8” Bsp M $11
26.2024.61 4050 / 30l/min 1/2” A 1/2” Bsp M $poa

* Please note, prices EXCLUDE GST and freight

back to top Λ

Quick Connects NPT Thread – Coupler "B"

B.A.R. Group - QC Coupler
Part # Pressure Material QC Size Inlet List *
85.300.183 2500 Brass 1/8” B 1/8” Npt F $8
85.300.102 2500 Brass 1/4” B 1/4” Npt F $10
85.300.114 3000 Brass/SS 1/4” B 1/4” Npt F $14
85.300.102S 5000 Stainless 1/4” B 1/4” Npt F $22
85.300.103 2500 Brass 3/8” B 3/8” Npt F $poa
85.300.115 3000 Brass 3/8” B 3/8” Npt F $13
85.300.103S 5000 Stainless 3/8” B 3/8” Npt F $29
85.300.153 3000 Brass 1/2” B 1/2” Npt F $33
85.300.153S 5000 Stainless 1/2” B 1/2” Npt F $39
EZ Grip Style
26.2010.30 2500 Brass 1/4” B 1/4” Npt F $poa
26.2010.30 3000 Brass 3/8” B 3/8” Npt F $poa

* Please note, prices EXCLUDE GST and freight

B.A.R. Group - QC Coupler
Part # Pressure Material QC Size Inlet List *
85.300.187 2500 Brass 1/8” B 1/8” Npt M $8
85.300.107 2500 Brass 1/4” B 1/4” Npt M $10
85.300.116 3000 Brass/SS 1/4” B 1/4” Npt M $12
85.300.107S 5000 Stainless 1/4” B 1/4” Npt M $21
85.300.108 2500 Brass 3/8” B 3/8” Npt M $12
85.300.117 3000 Brass/SS 3/8” B 3/8” Npt M $20
85.300.108S 5000 Stainless 3/8” B 3/8” Npt M $29
85.300.152 5000 Brass 1/2” B 1/2” Npt M $23
85.300.152S 5000 Stainless 1/2” B 1/2” Npt M $39
EZ Grip Style
85.300.197 2500 Brass 1/4” B 1/4” Npt M $9
85.300.198 3000 Brass 3/8” B 3/8” Npt M $13
Replacement O Rings Each * 100 Pack *
85.309.183 1/8” $0.18 $15
B.A.R. Group - O Ring
85.309.102C 1/4” B110 NBR $0.14 $15
85.309.102V 1/4” B110 Viton $0.60 $35
85.309.103C 3/8” B112 NBR $0.14 $15
85.309.103V 3/8” B112 Viton $0.59 $45
85.309.153V 1/2” Viton $0.59 $45

* Please note, prices EXCLUDE GST and freight

B.A.R. Group - QC EZ Grip

EZ-Grip rubber molding Style:

  • Prevents scolding when changing nozzles on hot water machines
  • Not as harsh on your fingers on cold winter mornings

Quick Connects NPT Thread – Plug "A"

B.A.R. Group - QC Plug
Part # Pressure Material QC Size Inlet List *
85.300.181H 2500 H Steel   1/8” Npt F $2
85.300.101S 5000 Stainless 1/4” A 1/4” Npt F $9
85.300.104 2500 Metal 3/8” A 3/8” Npt F $2
85.300.104H 3000 H Steel 3/8” A 3/8” Npt F $4
85.300.104S 5000 Stainless 3/8” A 3/8” Npt F $12
85.300.151S 5000 Stainless   1/2” Npt F $16

* Please note, prices EXCLUDE GST and freight

B.A.R. Group - QC Plug
Part # Pressure Material QC Size Inlet List *
85.300.185H 2500 H Steel   1/8” Npt M $2
85.300.109S 5000 Stainless 1/4” A 1/4” Npt M $8
85.300.105 2500 Metal 3/8” A 3/8” Npt M $poa
85.300.105H 3000 H Steel 3/8” A 3/8” Npt M $4
85.300.105S 5000 Stainless 3/8” A 3/8” Npt M $12
85.300.150S 5000 Stainless 1/2” A 1/2” Npt M $16
