* Please note, all quoted prices EXCLUDE GST and freight and are subject to change without notice.

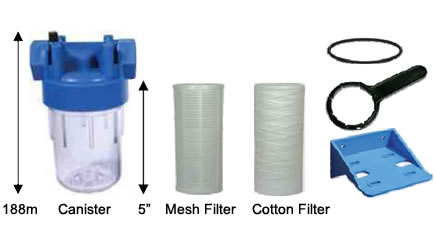

Water Inlet Strainer – 5" (188mm)

B.A.R. Group - Water Inlet Strainer
Part # In / Out Description List *
125 85.300.059 1/2" Full Kit $99
148 734 50 3/4" Canister only $46
148 734 60 1" Canister only $49
148 734 55   Mesh Filter 60 Microns $23
148 734 54   Mesh Filter 150 Microns $22
148 734 56   Cotton Filter 20 Microns $10
148 734 506   O Ring $5
148 734 505   Housing Key $11
148 734 507   Wall Holder - Plastic $18

* Please note, prices EXCLUDE GST and freight

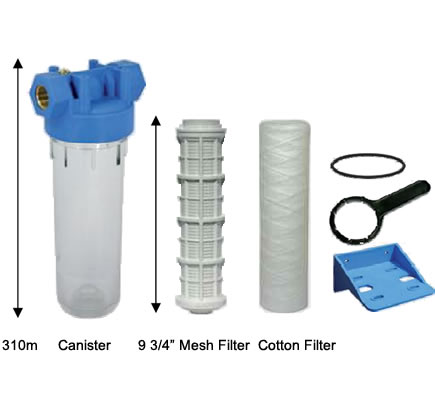

Water Inlet Strainer – 10" (310mm)

B.A.R. Group - Water Inlet Strainer
Part # In / Out Description List *
148 734 70 3/4" Canister only $59
148 734 80 1" Canister only $64
148 734 293 02   Mesh Filter 60 Microns $26
148 734 74   Mesh Filter 150 Microns $27
148 734 77   Cotton Filter 5 Microns $11
148 734 76   Cotton Filter 30 Microns $11
148 734 506   O Ring $5
148 734 505   Housing Key $11
148 734 507   Wall Holder - Plastic $18

* Please note, prices EXCLUDE GST and freight

The higher the number of microns, the more coarsely meshed is the filter i.e. 60 microns allows more grit than 20 microns
back to top Λ

Water Inlet Strainers / Filters

Water Inlet Strainer
B.A.R. Group - Water Inlet Strainer
  • Flow: 30 l/min., 40°C
  • Pressure: 3000Psi (max.)
  • Filtration: 80 Mesh
Part # In Out By List *
155 0211001100 1/2"F 1/2"F n/a $24
155 0211001090 1/2"F 1/2"M n/a $24
155 0211001080 1/2"F 1/2"M 1/4"F $25
Water Inlet Filter
B.A.R. Group - Water Inlet Filter
  • Flow: 37 l/min., 40°C
  • Pressure: 145Psi (max.)
  • Filtration: 50 Mesh
  • Inlet: 1 1/16" F
  • Outlet: 1/2" Npt M
Part # Outlet List *
85.300.058 1/2" Npt M $39
IPZA 1/2" Bsp M $39
85.300.165 Garden Adaptor $4
Strainer "Y"
B.A.R. Group - Strainer Y
  • Poly Y Poly Strainer with 400 micron
  • Flow:
  • Pressure:
  • Inlet: 1/2" Bsp M
  • Outlet: 1/2" Bsp M
Part # List *
147 23.0087 $39

* Please note, prices EXCLUDE GST and freight

Strainer "Y" Brass
B.A.R. Group - Strainer Y Brass

Brass Y Brass strainer with 45 mesh

  • Flow: 30 l/min., 100°C
  • Pressure: 225Psi (max.)
  • Filtration: 45 Mesh
Part # Inlet Outlet List *
0211000510 3/8" Bsp F 3/8" Bsp F $18
0211000520 1/2" Bsp F 1/2" Bsp F $18
0211000530 3/4" Bsp F 3/4" Bsp F $25
165 Y16 1" Bsp F 1" Bsp F $35
Water Inlet Filter (Clear Bowl)
B.A.R. Group - Water Inlet Filter (Clear Bowl)
  • Flow: 30 l/min., 40°C
  • Port Plugs: 1/4" Bsp F x 2
  • Inlet: 1 1/16" F
  • Outlet: 1/2" Npt M
Part # Desc. List *
85.300.055 Clear bowl Filter $43
85.300.165 Garden Adaptor $5
Inline Strainer (Turbo Nozzle Protector)
B.A.R. Group - Inline Strainer (Turbo Nozzle Protector)

Protects your turbo nozzle

  • Flow: 30 l/min., 40°C
  • Pressure: 5000Psi
Part # Inlet Outlet List *
85.211.007 QC Plug 14/" Bsp M $25
85.211.006 1/4" Npt M 1/4" Npt F $27

* Please note, prices EXCLUDE GST and freight

back to top Λ

Line Filters

Protect your machine from water contaminents at the inlet.

Line Filter T Style
B.A.R. Group - Line Filter T Style
  • to 55 l/min., 145 Psi., 60°C
Part # Size List *
146 8105037 1/2" Bsp FF 50 Mesh Blue $25
146 8105038 1/2" Bsp FF 80 Mesh Grey $25
146 8105039 1/2" Bsp FF 100 Mesh Red $25
146 8105040 3/4" Bsp FF 32 Mesh $25
146 8105041 3/4" Bsp FF 50 Mesh Blue $25
147 23.0032 3/4" Bsp FF 80 Mesh Grey $25
146 8105043 3/4" Bsp FF 100 Mesh Red $25
Filter Package
B.A.R. Group - Filter Package
  • BAR Petrol to 6.5Hp (ie where no Clear Bowl Filter fitted)
Part # Desc. List *
146 8105043-1   $39
Consists of:
146 8105043 Filter
165 1010612 Plas. Garden Plug
165 40-BAR731212 Brass Plug
Filter Package
B.A.R. Group - Filter Package
  • BAR Petrol from 9Hp (ie where a Clear Bowl Filter is fitted)
Part # Desc. List *
146 8105043-2   $39
Consists of:
146 8105043 Filter
165 1010612 Plas. Garden Plug
165 40-BAR731212 Brass Plug
165 40-BAE01 Gdn thread to Bsp
Filter Package
B.A.R. Group - Filter Package
  • BAR Electric machines (ie where a Clear Bowl Filter is fitted)
Part # Desc. List *
146 8105043-3   $29
Consists of:
146 8105043 Filter
165 1010612 Plas. Garden Plug
125 85.300.167 Plas. Garden Ad

* Please note, prices EXCLUDE GST and freight

back to top Λ
Line Filter – In-line Style
B.A.R. Group - Line Filter In-line Style
Line Filter - In-Line Style to 55 l/min., 145 Psi.,60°C Filter Package BAR Electric machines
Part # Desc. List * Part # Desc. List *
115 10020129 1/2" Bsp MF 50 Mesh $26 115 10020129-11   $33
155 0211001110 1/2" Bsp MF 50 Mesh $26 Consists of:
      115 10020129 Filter
      125 85.300.167
      165 1010600
T Style Replacement Cartridges
B.A.R. Group - T Style Replacement Cartridges
Dimensions L72mm x W32mm)
Part # Description List *
146 C00100057 Cartridge $7
146 C00100058 Cartridge Blue $8
146 C00100059 Cartridge Grey $9
146 C00100060 Cartridge Red $9
146 G00002052 Gasket $2

* Please note, prices EXCLUDE GST and freight

back to top Λ
Line Filter - F5L & F8 T Style
B.A.R. Group - F5L Line Filter
B.A.R. Group - F8 Line Filter
B.A.R. Group - F5L Line Filter T Style
F5L Line Filter - T Style to 30 l/min.,
145 Psi., 40°C		 F8 Line Filter - T Style to 30 l/min.,
145 Psi., 40°C		 F5L Line Filter - T Style to 30 l/min.,
145 Psi., 40°C		 Replacement Filters
Part # Desc. List * Part # Desc. List * Part # Desc. List * Part # Desc. List *
145 28.0320.00 1/2" Bsp FM
46 M		 $25 145 28.0390.00 1/2" Bsp FM
46 M		 $35 145 28.0370.00 1/2" Bsp FM
46 M		 $35 145 28.0323.53 46m $poa
145 28.0320.15 1/2" Bsp FM
100 M		 $25 145 28.0390.15 1/2" Bsp FM
100 M		 $35       145 28.0326.53 100m $poa
145 28.0320.20 1/2" Bsp FF
46 M		 $25 145 28.0380.00 1/2" Bsp FF
46 M		 $35
145 28.0320.65 1/2" Bsp FF
100 M		 $25 145 28.0380.15 1/2" Bsp FF
100 M		 $35

* Please note, prices EXCLUDE GST and freight

back to top Λ
