Hand Crank Reels – BAR Pressure Washer Reels

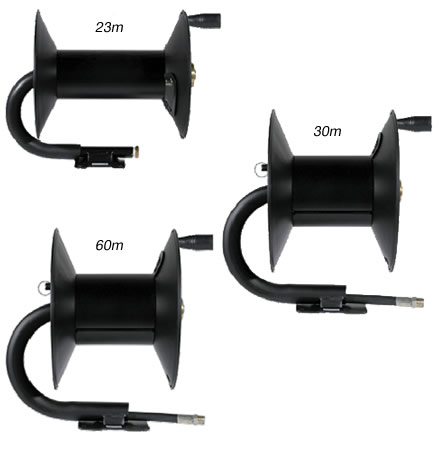

Hand Crank Pressure Washer Reels
Ideal for mounting to Pressure Washer Frames and Truck Floors.
General Features:
- Maximum pressure to 4000Psi / Temp 90°C
- Complete with 4 hole mounting plate, tubular arm and inlet hose. Mounting Plate Specs: 150mm x 10mm (plate 5.2mm thick)
- Fittings: Inlet- 3/8" Male / Outlet - 3/8" Female
- Ideal Hose Size 3/8" or 1/4"
- Locking Pin fitted to prevent recoil (ex. 23m)
- Stainless Steel model for food code or extended life applications
| Part # |
Capacity
R2 3/8"
(metres) |
Material Finish |
Psi |
Kg |
List * |
| 85.402.000 |
23 |
Black |
4000 |
5 |
$189 |
| 85.402.001 |
30 |
Black |
4000 |
7 |
$269 |
| 85.402.001BA |
23 |
Black |
4000 |
7 |
$289 |
| 85.402.002 |
60 |
Black |
4000 |
8 |
$315 |
| 85.402.002S |
60 |
Stainless |
4000 |
|
$560 |
| Replacement Parts |
| Part # |
Description |
List * |
| 85.402.004 |
Swivel 23m |
$64 |
| 85.402.003 |
Swivel Repair Kit |
$poa |
| 85.402.005 |
Swivel 31m & 61m |
$74 |
| 85.402.009 |
Swivel Repair Kit |
$18 |
| 85.402.005S |
Swivel- Stainless |
$73 |
| 85.402.009S |
Swivel Repair Kit SS |
$23 |
| 85.402.007 |
Side Handle |
$10 |
| 01.008.040 |
Bolt Set |
$0.30 |
| 09.000.008 |
Nut Set |
$0.30 |
| 39.000.008 |
Washer Set |
$0.30 |
| Reel Capacity Calculator |
| Hose |
1/4" |
5/16" |
3/8" |
| 23m |
60m |
30m |
23m |
| 31m |
80m |
40m |
31m |
| 61m |
160m |
80m |
61m |
| Fit Hose Reel to BAR Pressure Washer |
| Part # |
Desc |
List * |
|
| 85.402.012 |
Bracket to fit Hose Reel |
$39 |
| 85.402.008 |
Fittings Kit |
$66 |
Both items required to fit Reel
Nb: Fittings Kit includes 85.238.022 700mm by-pass hose, 85.300.104 Plug, 85.713.006 Bushing & 85.704.001 Elbow |

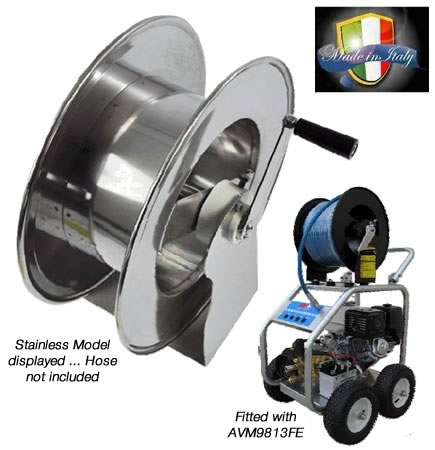

Italian Crank Reels – Black Powder Coated
Manual Hose Reel - Base Mount (fully manufactured in Italy)
- Standard finish in Black Powder Coated Carbon Steel
- High Quality 5800Psl Swivel Inlet: 1/2" Male / Outlet: 1/2" Female
- Handles Water Temperature to 90°C
- xxxx Hose not included in List Price xxx
| Part # |
Hose Capacity |
Material Finish |
IW Drum
H Reel
D Drum |
Kg |
List * |
| 1/4" |
3/8" |
1/2" |
| 175 AVM9810FE |
50m |
35m |
25m |
Carbon Steel |
15 x 48 x 7.5 |
10 |
$499 |
| 175 AVM9811FE |
70m |
50m |
35m |
Carbon Steel |
20 x 48 x 7.5 |
10 |
$570 |
| 175 AVM9812FE |
80m |
60m |
43m |
Carbon Steel |
tba x 48 x 7.5 |
12 |
$599 |
| 175 AVM9813FE |
100m |
70m |
50m |
Carbon Steel |
29 x 48 x 7.5 |
12 |
$699 |
5
| High Volume Reel with Guard Rail |
| 175 AVM9850FE |
|
100m |
|
Carbon Steel |
|
|
$1,299 |
| 165 C10480300RG |
|
100m |
|
Carbon Steel |
48 x 59 x 54 |
|
$1,899 |
| |
| 175 4960 1/2 |
Swivel - 5800Psi - 1/2" |
$99 |
| 175 KIT400 |
Repair Kit for Swivel 4960 1/2" |
$79 |
* Please note, prices EXCLUDE GST and freight

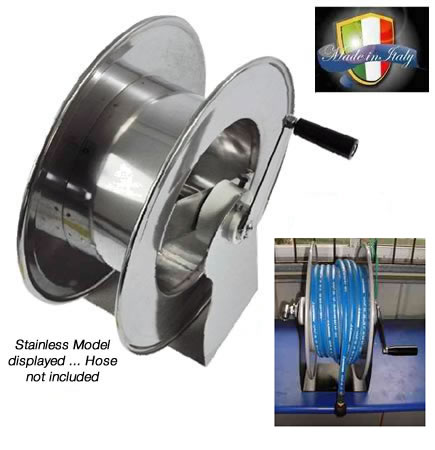

Italian Crank Reels – Stainless Steel
Manual Hose Reel - Base Mount (fully manufactured in Italy)
- Standard finish in Stainless Steel AISI304
- Stainless Steel AISI316 Option - Multiply Standard Price by 2.0
- High Quality 5800Psl Swivel Inlet: 1/2" Male / Outlet: 1/2" Female
- Handles Water Temperature to 90°C
- xxxx Hose not included in List Price xxx
| Part # |
Hose Capacity |
Material Finish |
IW Drum
H Reel
D Drum |
Kg |
List * |
| 1/4" |
3/8" |
1/2" |
| 175 AVM9002 |
|
20m |
20m |
Stainless Steel |
32 x 40 x 40 |
10 |
$499 |
| 175 AVM9810 |
50m |
35m |
25m |
Stainless Steel |
15 x tba x tba |
10 |
$poa |
| 175 AVM9811 |
70m |
50m |
35m |
Stainless Steel |
20 x 48 x 7.5 |
10 |
$poa |
| 175 AVM9812 |
80m |
60m |
43m |
Stainless Steel |
|
12 |
$poa |
| 175 AVM9813 |
100m |
70m |
50m |
Stainless Steel |
29 x 48 x 7.5 |
12 |
$poa |
| High Volume Reel with Guard Rail |
| 175 AVM9850 |
|
100m |
|
Stainless Steel |
|
|
$2,350 |
| |
| 175 4960 1/2 |
Swivel - 5800Psi - 1/2" |
$99 |
| 175 KIT400 |
Repair Kit for Swivel 4960 1/2" |
$79 |
* Please note, prices EXCLUDE GST and freight
Rapid Reel – With Fixed Base
Premium Hose Reel (supersedes 4413-PW & 4416-PW) - The Plumbers Choice!
- USA manufactured
- Rated to 5000Psi, 325°F
- Swivel (Inlet 1/2"M Npt x 3/8"F Npt) with resilient brass and stainless construction to withstand high pressure, active
chemicals and years of demanding use. Swivel fitted with Viton seals
- Cam lever brake prevents unspooling
- Heavy Duty construction with black powder coated finish
| Part # |
Hose Capacity (3/8" Hose) |
List * |
| 175 1060 |
Hose Reel, Fixed, Floor 30 Metres |
$425 |
| 175 1065 |
Hose Reel, Fixed, Floor 60 Metres |
$465 |
| 175 1066 |
Hose Reel, Fixed, 45° Arm, 60 Metres |
$465 |
| 175 1067 |
Hose Reel, Fixed, 90° Arm, 60 Metres |
$465 |
| 175 1051 |
Universal Mounting Bracket |
$39 |
* Please note, prices EXCLUDE GST and freight
Rapid Reel – With Pivot Base
Premium Hose Reels (Supersedes 5513-PW & 5516-PW) - The best quality, full featured Hose Reel available for pressure washers and fixed applications
- USA manufactured
- Rated to 5000Psi, 325°F
- Swivel (Inlet 1/2"M Npt x 3/8"F Npt) with resilient brass and stainless construction to withstand high pressure, active chemicals and years of demanding use. Swivel fitted with Viton seals
- Cam lever brake prevents unspooling
- Flip over hose guide prevents injury
- Pivot lock with 8 position options fitted for transportation
- Heavy Duty construction with black powder coated finish
| Part # |
Hose Capacity (3/8" Hose) |
List * |
| 175 1070 |
Hose Reel, Pivot, Universal, 30 Metres |
$549 |
| 175 1074 |
Hose Reel, Pivot, Universal, 60 Metres |
$599 |
| 175 1076 |
Hose Reel, Pivot, Floor Base, 60 Metres |
$629 |
| 175 1077 |
Hose Reel, Pivot, Wall Base, 60 Metres |
$649 |
| 175 1051 |
Universal Mounting Bracket |
$39 |
* Please note, prices EXCLUDE GST and freight
Rapid Reel Parts
| Model |
Desc |
Part # |
List * |
4413 - PW |
4416 - PW |
5513 - PW |
5516 - PW |
PW134 - RR |
GH164 - CT |
GH168 - WG |
GH164 - PL |
GH164 - PD |
| Swivel |
3/8" 4500 Psi |
5004.005 |
$99 |
|
|
|
|
√ |
|
|
|
|
| Swivel |
3/8" x 1/2" 5000 Psi |
175 2458 |
$99 |
√ |
√ |
√ |
√ |
|
|
|
|
|
| Repair Kit |
For Swivel |
175 2456 |
$21 |
√ |
√ |
√ |
√ |
|
|
|
|
|
| Locks, Brakes & Handles |
| Lock Assy |
Key-Ring Pull |
2431 |
$13 |
|
|
|
|
|
|
|
|
|
| Cam Lever |
Brake Assy 1 1/2" |
5001.021 |
$29 |
|
|
|
|
|
|
|
|
|
| Handle Kit |
|
175 2589 |
$29 |
|
|
|
|
|
|
|
|
|
| Axle/Base |
|
5001.026 |
$35 |
|
|
|
|
√ |
|
|
|
|
| Hose Guide |
|
5001.071 |
$69 |
|
|
√ |
|
|
|
|
|
|
| Hose Guide |
|
5001.124 |
$99 |
|
√ |
|
√ |
|
|
|
|
|
| Flange & Drum |
Assy 13" |
9001.002 |
$199 |
√ |
|
√ |
|
√ |
|
|
|
|
| Flange & Drum |
Assy 16" |
9001.003 |
$199 |
|
√ |
|
√ |
|
√ |
|
|
|
| Tension Brake |
Wavy Washer |
4103.007 |
$3 |
|
|
|
|
|
|
|
|
|
| Axle Bushing |
|
4202.012 |
$5 |
|
|
|
|
|
|
|
|
|
| Hose Clamp |
|
4209.001 |
$3 |
|
|
|
|
|
|
|
|
|
| Double Snap |
Button |
4209.012 |
$2 |
|
|
|
|
|
|
|
|
|
