* Please note, all quoted prices EXCLUDE GST and freight and are subject to change without notice.

High Pressure Hose Reels – Spring Retractable

B.A.R. Group - Spring Retractable Hose Reel

Automatic Spring Driven Hose Reels (fully manufactured in Italy)

  • Standard finish in Grey Powder Coated Carbon Steel
  • Stainless Steel AISI304 and AISI316 options available
  • Reel fitted with 5800Psi rated swivel
  • Swivel Inlet 1/2" Male / Outlet 1/2" Female
  • Handles Water Temperature to 90°C
  • Wall mounted Swivel Bracket available
  • Remember to order a Hose Bumper to suit your hose diameter
  • xxx Hose not included in List Price xxx
B.A.R. Group - Spring Retractable Hose Reel
Part # Hose Capacity Material Finish Swivel Bracket
List *		 Full Spring Kit
(for fast repair)
List *		 Dimensions
L / P / H (cm)		 Kg List *
1/4" 3/8" 1/2"
Powder Coated Reels
175 AV1000FE 15m 15m 15m Carbon Steel 175 ST15FE $79 175 KIT92 $259 25 x 50 x 48 13 $499
175 AV1100FE 20m 20m 20m Carbon Steel 175 ST20FE $79 175 KIT92 $259 25 x 50 x 48 18 $550
175 AV2000FE Same as above with Parallel Hose Release
175 AV1100CA 20m 20m 20m Cataph. Steel 175 ST20CA $114 175 KIT92 $92 25 x 50 x 48 18 $749
175 AV3500FE 35m 35m 35m Carbon Steel 175 ST30FE $150 175 KIT94 $399 31 x 59 x 60 28 $999
175 AV6000FE 60m 60m 60m Carbon Steel n/a 175 KIT97 $899 59 x 59 x 59 50 $1,799
175 AV6300FE 100m n/a n/a Carbon Steel n/a 175 KIT99 $1,199   60 $1,999
High Volume Reel with Guard Rail
175 AV1000 15m 15m 15m SS AISI 304 175 ST15 $poa 175 KIT92 $259 25 x 50 x 48 13 $poa
175 AV1100 20m 20m 20m SS AISI 304 175 ST20 $118 175 KIT92 $259 25 x 50 x 48 13 $956
175 AV1300 20m of 3/4" or 1" SS AISI 304 175 ST22 $poa 175 KIT92 $259 25 x 50 x 48 13 $1,599
175 AV3500 35m 35m 35m SS AISI 304 175 ST30 $250 175 KIT94 $399 31 x 59 x 60   $1,299


175 4960 1/2 Swivel - 5800 Psi - 1/2"
B.A.R. Group - Retractable Reels Dimensions
 $99
175 KIT400 Repair Kit for Swivel 4960 1/2" $79
175 4942 Hose Bumper 1/4" $19
175 4943 Hose Bumper 3/8" $19
175 4944 Hose Bumper 1/2" $19
175 KIT12 Spring latchet $11

* Please note, prices EXCLUDE GST and freight

Hydraulic Drive Reels

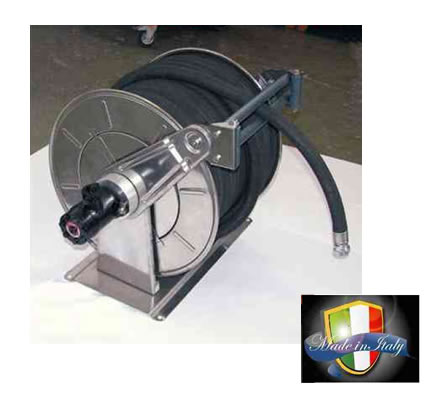

B.A.R. Group - Hydraulic Drive Reel

Hydraulic Drive Hose Reel – Base Mount (fully manufactured in Italy)

  • Capacity to 100m 1/2" (20mm external) hose
  • Complete with hydraulic motor (control not included)
  • High Quality 5800Psl Swivel Inlet: 1/2" Male / Outlet: 1/2" Female
  • Handles Water Temperature to 90°C
  • xxxx Hose not included in List Price xxx
Part # Hose Capacity Material Finish Size Kg List *
1/4" 3/8" 1/2"
175 AV6500FE     100m Carbon Steel   50 $2,750
175 AV6500     100m Stainless Steel   50 $3,450

* Please note, prices EXCLUDE GST and freight

Electric Drive 12V Reels

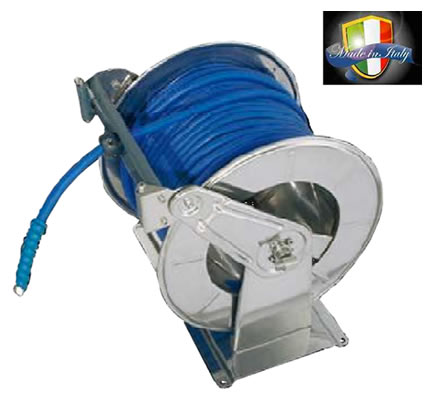

B.A.R. Group - Electric Drive Reel

Electric Drive Hose Reel – Base Mount (fully manufactured in Italy)

  • Capacity to 100m 1/2" (20mm external) hose
  • Complete with manual switch control, torque limiter, 12v IP54 motor
  • Requires rain protection if mounted outside
  • High Quality 5800Psl Swivel Inlet: 1/2" Male / Outlet: 1/2" Female
  • Handles Water Temperature to 90°C
  • xxxx Hose not included in List Price xxx
Part # Hose Capacity Material Finish Size Kg List *
1/4" 3/8" 1/2"
175 AVEK0FE     100m Carbon Steel     $3,999
175 AVEKO     100m Stainless Steel     $4,999

* Please note, prices EXCLUDE GST and freight

High Capacity Reels and Plastic Reels

High Capacity Reels
B.A.R. Group - High Capacity Reel

  • Max pressure 3000Psi
  • Hose Size 1/2"
  • Capacity to 122 metres
Part # Capacity
!/2" Hose		 Dimensions Kg List *
85.401.020 61 metres 19.5" x 13" x 9.5" 10 $149
85.401.040 122 metres 19.5" x 13" x 9.5" 11 $199
85.401.100 Swivel $45

* Please note, prices EXCLUDE GST and freight

Plastic Reels
B.A.R. Group - Plastic Reel
  • Low and high pressure reels
  • T28 with stainless swivel, screws and rest
  • T16 / T26 / T46 with brass swivels and painted steel rest
  • Italian manufactured
Part # Type Hose Capacity Inlet Psi (max) List *
145 29.0728.00 T28 18mtrs of 1" 3/4" Bsp M 940 $449
145 29.0710.00 T16 10 mtrs of 3/8" 3/8" Bsp M 4050 $199
145 29.0720.00 T26 20 mtrs of 3/8" 3/8" Bsp M 4050 $236
145 29.0740.00 T46 40 mtrs of 3/8" 3/8" Bsp M 4050 $263

* Please note, prices EXCLUDE GST and freight

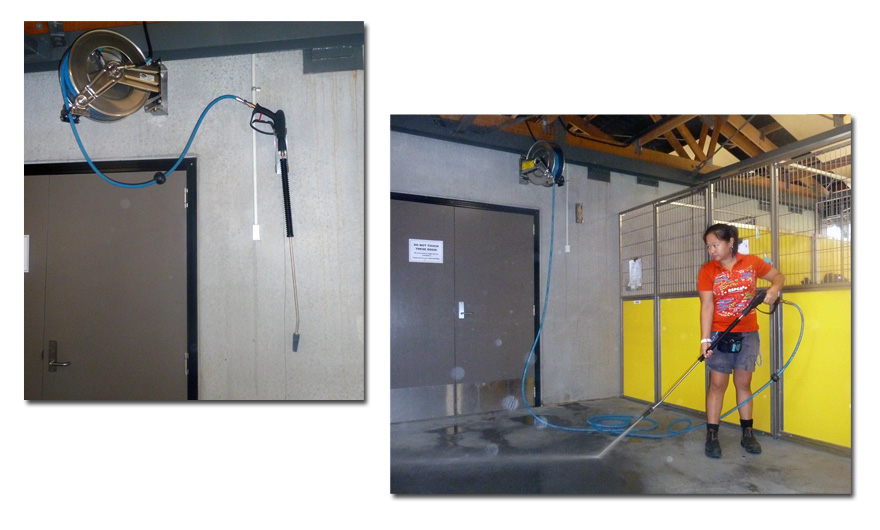

B.A.R. Group - Retractable High Pressure Hose
