* Please note, all quoted prices EXCLUDE GST and freight and are subject to change without notice.

K Series – Hose / Nozzles

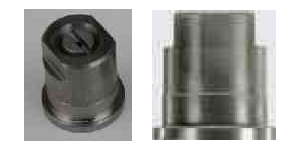

Tip Nozzle
  • Insulated knob, fits K Series
B.A.R. Group - K Series Hose/Nozzles
List Price * $17 0º “Pencil” Blasting 15º “Fan” Chiselling 25º “Fan” Flushing 40º Wash
Size Part # Part # Part # Part #
020   602 40 020
025   602 45 025 604 95 025
030 600 05 030 602 50 030 605 00 030 607 50 030
035     605 05 035
040 600 10 040 602 60 040 605 10 040 607 60 040
045 600 20 045 602 70 045 605 20 045 607 70 045
050 600 30 050 602 80 050 605 30 050 607 80 050
055 600 40 055 602 90 055 605 40 055 607 90 055
060 600 50 060 603 00 060 605 50 060 608 00 060
065 600 60 065 603 10 065 605 60 065 608 10 065
070 600 70 070 603 20 070 605 70 070 608 20 070
075 600 75 075 603 25 075 605 75 075 608 25 075
080 600 80 080 603 30 080 605 80 080 608 30 080
085 600 90 085 603 40 085 605 90 085
090 601 00 090 603 50 090 606 00 090 608 40 090
100 601 10 100 603 60 100 606 10 100 608 60 100
120   603 70 120 606 20 120
130 601 30 130 603 80 130 606 30 130 608 70 130
150 601 40 150 603 90 150 606 40 150 608 80 150

* Please note, prices EXCLUDE GST and freight

Hobby Hoses
M22 010 (18.0 M22 011 K M22 010 (15.5)
B.A.R. Group - Hobby Hoses
B.A.R. Group - Hobby Hoses
B.A.R. Group - Hobby Hoses
  Part # List * Part # List * Part # List *
10m 390028210 $88 390091210 $99 390010210 $99
15m 390028215 $119 390091215 $129 390010215 $125
10m 460028210 $74 460091210 $75 460010210 $71
15m 460028215 $93 460091215 $94 460010215 $90

* Please note, prices EXCLUDE GST and freight

Nozzle Holder Kit M18
B.A.R. Group - Nozzle Holder Kit
Specifications
Pressure: 3600 Psi (max.)
Temp: 150°C
Inlet: 1/4" Bsp F
Part # Description List *
155 0183000080 K Nozzle Protector $10

* Please note, prices EXCLUDE GST and freight

B.A.R. Group - Nozzle Holder Kit

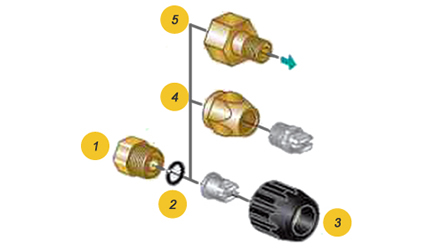

Nozzle Holder Kit
  • Coupler between gun and lance - Gerni / WAP style
Part #   Description List *
148 519 50 1 Nozzle Holder
Entry: 1/4" Bsp F
Outlet: M18F K		 $5
148 790 25 2 Spare O Ring $1
148 519 60 3 Nozzle Protector M18F $5
148 519 40 4 Nozzle adaptor
Entry: M18F K
Outlet:1/4" Bsp F		 $8
148 519 70 5 2 Piece Adaptor 1/4” M /1/8” F $9

* Please note, prices EXCLUDE GST and freight
