* Please note, all quoted prices EXCLUDE GST and freight and are subject to change without notice.

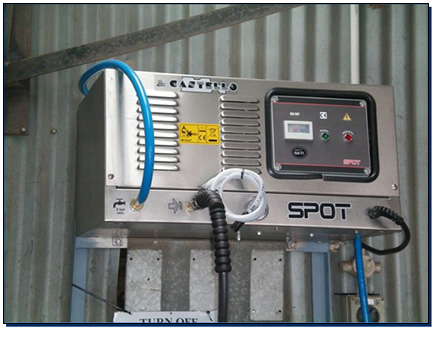

Spot Wall Mounted / Cold Water
| |
Industrial Use |
| Model |
Spot 10/12 |
Spot 15/15 |
Spot 15/21 |
Spot 20/15 |
Spot 20/21 |
Tandem Duo |
| Performance |
| Water Pressure (Psi) |
1550 Psi |
2175 Psi |
2175 Psi |
2900 Psi |
2900 Psi |
2900 Psi x 2 |
| Water Flow Rate |
12 l/min. |
15 l/min. |
21 l/min. |
15 l/min. |
21 l/min. |
15 l/min. x 2 |
| Electric Motor |
| kW / Hp |
2.2kW |
4kW |
5.5kW |
5.5kW |
7.5kW |
5.5Hp x 2 |
| Voltage |
240 Volt |
415 Volt |
415 Volt |
415 Volt |
415 Volt |
415 Volt x 2 |
| Electrical Outlet Size |
n/a |
| Motor Speed - Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm x 2 |
| Pump |
| Pump - Type |
Interpump |
| Pump - Model |
|
|
|
|
|
|
| Water Inlet Temperature |
60° maximum (Hot Water Kit available) |
| Weight - Dead |
|
|
|
|
|
|
| Dimensions |
|
|
|
|
|
|
| Standard Accessories |
| Gun |
√ |
√ |
√ |
√ |
√ |
√ |
| Lance |
√ |
√ |
√ |
√ |
√ |
√ |
| Nozzle |
Stainless |
| Hose |
10 metres 5/16” with 3/8” M/F ends |
| Water Tank |
√ |
√ |
√ |
√ |
√ |
30 litres |
| List Price * |
$3,799 |
$3,999 |
$4,299 |
$4,299 |
$4,599 |
$9,599 |
* Please note, prices EXCLUDE GST and freight

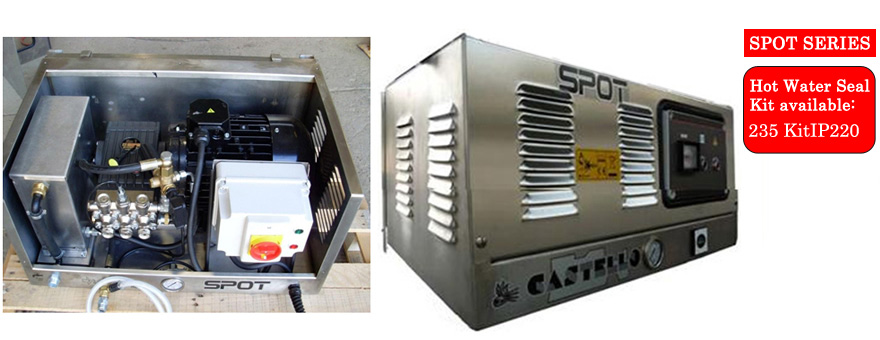

Spot In-Place Series
SPOT - In Place (Cold Water)
All SPOT models are constructed with a Stainless Steel AISI304 frame, including wall brackets and closing panels.
Features:
- INTERPUMP Piston Pump
- Stainless water break tank to protect pump
- Slow running 1440rpm electric motor with IP55 water resistant protection
- Water tight electric panel c/w thermal switch
- Delayed total stop
- By-Pass valve
- Pressure Gauge
- Stainless mesh filter on inlet
- Includes wall mounting brackets
- Supplied with gun, lance, nozzle and hose, READY TO WORK
Cold Water
All Spot models are built with strong Stainless Steel AISI 304 structure and are supplied with wall brackets for easy mounting. Ultra heavy duty models.
Features:
- INTERPUMP Piston Pump c/w ceramic pistons
- Stainless Water Break Tank c/w float to protect the pump
- Delayed Total Stop (after 30 minutes inactivity)
- By-pass valve
- Pressure Gauge
- Direct water entry to the pump, via a stainless steel mesh filter
- Electrical motor, 240 - 415v 40Hz 1440 RPM/Min. insulation class H, protection IP55
- Water tight electric pane1, 24 volts, complete with thermal switch
- Thermal switch
- Transformer 240 - 415v
- Low Pressure Detergent Suction
- Inlet water filter
- Detergent filter
- Hose - 10m metres x 5/16" hose c/w 3/8 M.F ends
- Stainless steel Meg nozzle
