Machines - Cold Water – Typhoon

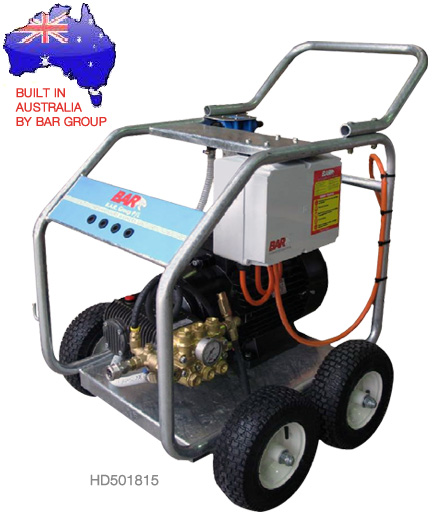

B.A.R. Group - Typhoon Electrical Series

Cold Water - Typhoon Electrical Series

Industrial model. Built to traditional Australian standards. Coupled with 4 pole 1440 Rpm double flange electric motor and a Comet Premium pump.

Bullet proof machine without all the "fruit". Great for remote areas where the machine must operate, no matter what.

Remember the lack of electrics places responsibility on the user to not run the machine in by-pass as there is no automatic protection.

General Features:

  • Pump
    • Comet Italian Premium Pump. We believe this is now the best High Pressure pump on the market
    • New external Pulsar Zero Unloader. Results in Zero line pressure
    • Thermal dump valve
  • Motor
    • Nicolini Electric Motor - 1440 Rpm Double Flange with elastic joint. The newest electric motor technology
    • Fitted with three phase plug
    • 32 amp DOL (Direct on line starting)
    • 5 metres of power cable
    • On/Off switch
    • Not fitted with TOTAL STOP electric systems
  • Other
    • Galvanised Roll Frame with 4 Pneumatic tyres
    • Cross Plate fitted standard. Gives frame more stability and allows for easy mounting of a Hose Reel
Model Pressure (Psi) Flow (l/min.) Kw Motor Speed List Price *
Industrial
108 HD151122** 1500 11 2.2 1440 $2,180
108 HD151122A 1500 11 2.2 1440 $2,280
108 HD301555 3000 15 5.5 1440 $2,699
108 HD302175 3000 21 7.5 1440 $3,199
108 HD402110 4000 21 10.8 1440 $5,140
108 HD501815 5000 18 15 1440 $7,087
108 HD302610 3000 26 11 1440 $3,999
** Hollow Shaft Motor
Built to order
108 HD034222 300 42 2.2 1440 $2,700
108 HD191855 1900 18.8 5.5 1440 $2,700
108 HD200922 2000 9 2.2 1440 $poa
108 HD211540 2150 15 4.0 1440 $poa
108 HD401575 4000 15 7.5 1440 $4,033
108 HD502218 5000 22 18.5 1440 $10,728
108 HD721315 7200 13 15 1440 $poa

* Please note, prices EXCLUDE GST and freight

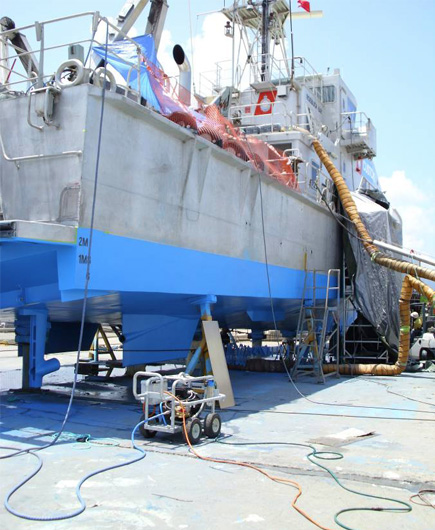

B.A.R. Group - Cold Water Typhoon Electrical Series

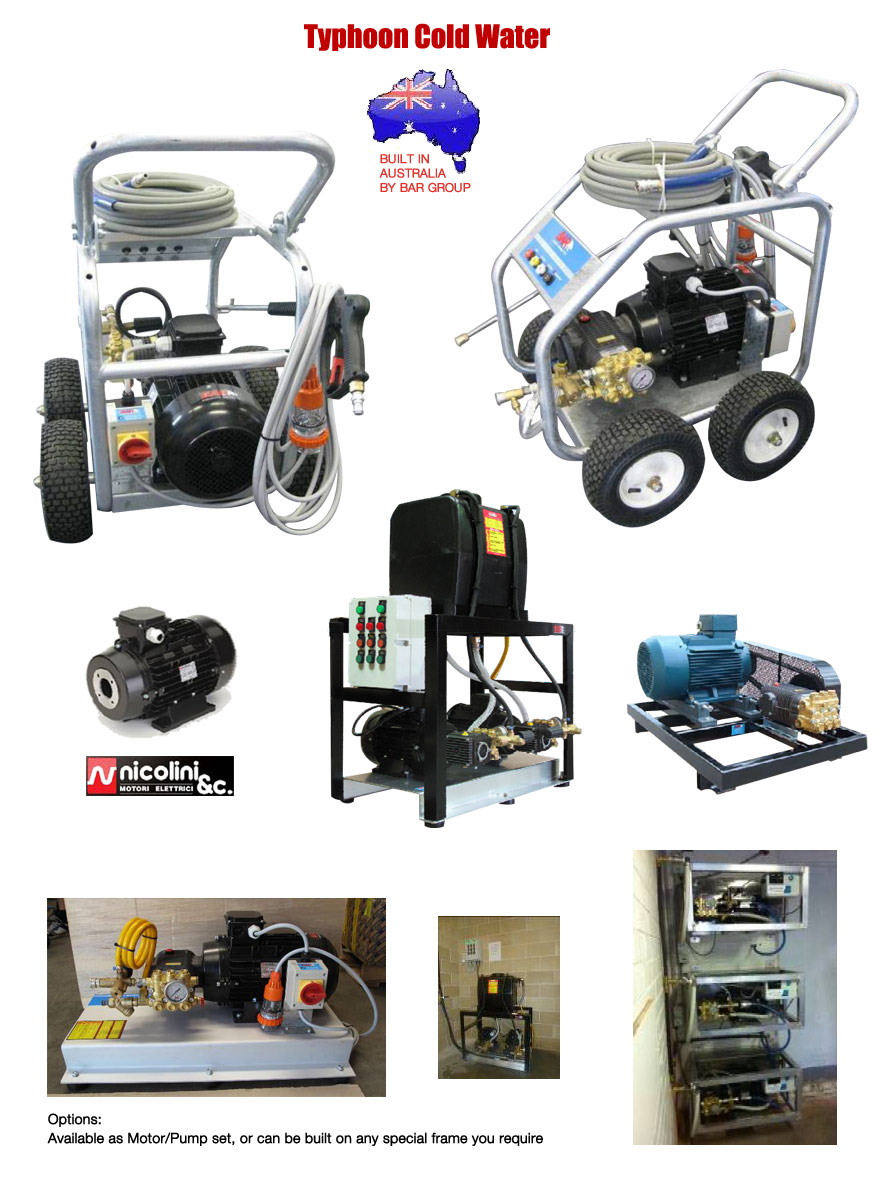

B.A.R. Group - Typhoon Cold Water Options
